Application:

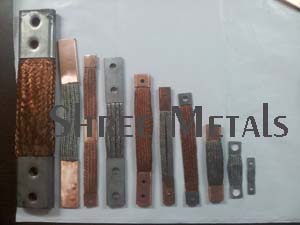

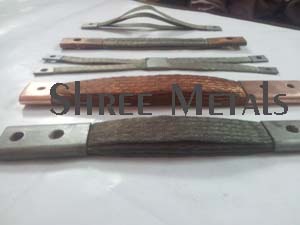

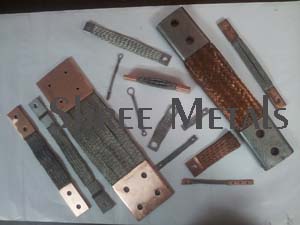

For low and medium voltage applications, flexible braided connectors are used mainly in the energy industry for wind turbines, generators, substations, transformers, circuit breakers and rectifiers. They are also used in the automotive, aerospace, information technologies and military sectors.

Flexible braided connectors are mainly used in the following situations:
• Heavy mechanical vibrations
• Thermal contraction and/or expansion of attached units
• Space constraints

Material Used:

Ferrules

• Seamless C11000 ETP copper tube as per ASTM B188
• Seamless C12200 DHP copper tube as per ASTM B75
or as per ASTM B88

Ferrule plating options

• Electrolytic tin plating as per ASTM B545
• Electrolytic silver plating as per ASTM B700
• Electroless nickel plating as per ASTM B733
• Lead free hot tin dip plating

The standard thickness plating on a ferrule is 0.0003” although it can reach up to 0.004”, upon customer request.

Flat, round or tubular braids

• Tin-plated C11000 ETP copper as per ASTM B33
• Silver-plated C11000 ETP copper as per ASTM B298
• Nickel-plated C11000 ETP copper as per ASTM B335
• Bare C11000 ETP copper as per ASTM B33
• Stainless steel alloys 302, 304, 321 or 430
• Aluminum alloy 5056

Most commonly used wire gages in the industry are 30 AWG (.010”) to 44 AWG (.002”).

Dimensions

• Ferrule widths up to 10”
• Ferrule thickness up to 3”
• Total connector length up to 120”
• Mounting holes as per NEMA standards

Custom sizes are also available.

Material :

bare C11000 copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-4000 SQMM

Purpose :

flexible electrical, conductive or grounding connection

RoHS compliant

Customization available for special dimension, shapes and structure.

Material :

tinned C11000 ETP copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-4000 SQMM

Purpose :

flexible electrical, conductive or grounding connection

RoHS compliant

Customization available for special dimension, shapes and structure.

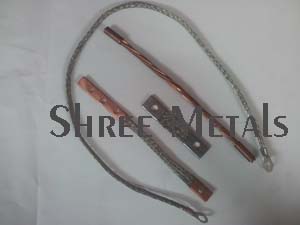

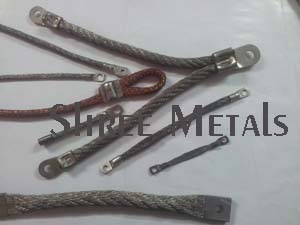

Material :

C11000 copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-4000 SQMM

Lugs :

C1100 copper lugs of various types by different crimping methods

Lug plating :

no plating, tin plating or silver plating

Purpose :

flexible electrical, conductive or grounding connection

RoHS compliant

Customization available for special dimension, shapes and structure.

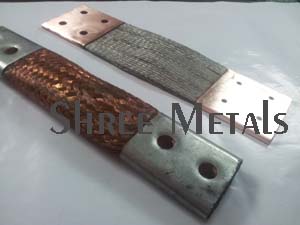

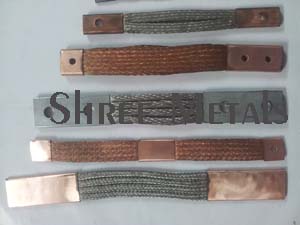

Material :

C11000 copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-4000 SQMM

Ferrules :

seamless bare or tinned C1100 copper tube

Ferrule plating :

no plating, tin plating or silver plating

Purpose :

flexible electrical, conductive or grounding connection

RoHS compliant

Customization available for special dimension, shapes and structure.

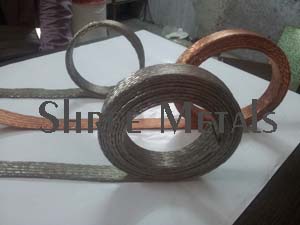

We manufacture and export Flat Copper Braid. Our range of Copper Conductor also includes Flat Copper Braid.

Flat Copper Braids Flat Copper Braid Flat Tin Copper Braid / Flat Tinned Copper Braids

Other Finish in Flat Copper Braid:

Our wide range of Flat Copper Braid products is available in the following copper wire finishes:

Bare copper / Plain copper / red copper
Electro tin plated copper
Electro nickel plated copper
99.99% pure Silver electro plated copper
Enamel coated, which insulates each wire
And other finishes on request.

Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers.

We use the finest quality material for Flat Copper Braid to ensure consistency of quality and performance, drawing on our supplier’s decades of experience in drawing, stranding and braiding, as well as surface treatment.

We manufacture and export Flexible Copper Braids Rope. Our range of Copper Conductor also includes Flexible Copper Braids Rope.

Our most economical standard copper braids are made from 0.20 diameter wire and are braided into a tube followed by a rolling process.

Flexible Copper Braids Rope are used as earthing straps and are also used in numerous electrical components. Highly copper flexible bare, tin & silver coated. Round braids are used for carbon brushes, relays, gaskets, telecom, automobiles, earthing etc.

We manufacture and export Flexible Square Copper Braids. Our range of Copper Conductor also includes Flexible Square Copper Braids.

Our most economical standard copper braids are made from 0.20 diameter wire and are braided into a tube followed by a rolling process.

They are used as earthing straps and are also used in numerous electrical components. Highly copper flexible bare, tin & silver coated. Square braids are used for carbon brushes, relays, gaskets, telecom, automobiles, earthing etc.

We manufacture and export Flexible Copper Braid Strap. This Flexible Copper Braid Strap are suitable for Earth Bonding.

Customer specific sizes & types of braid can be manufactured on order.

* Tinned Copper Flexible Braid also available
* Add suffix ‘T’ to the Product Code for Tinned Flexible Copper Braid Strap

Flexible Copper Braids Strap / Copper Braided Strap / Tin Copper Flexible Braid Strap Flexible Copper Braids Strap / Copper Braided Strap / Tin Copper Flexible Braid Strap

Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers.

Flexible Copper Braid Strap can be supplied as Standard Drilled & Pre-Cut Bonds.

High conductivity copper
Wire to Bs - 4109 - C101
Suitable for Earth Bonding/ also supplied as Standard Drilled & Pre-Cut Bonds.
Customer specific sizes & types of braid can be manufactured on order.

In electrical and electronic cables, braid is a tubular sheath made of braided strands of metal placed around a central cable for shielding against electromagnetic interference. The braid is grounded while the central conductor or conductors carry the signal.

Another use is for lit wire which uses braids of thin insulated wires to carry high frequency signals with much lower losses from skin effect or to minimise proximity effect in transformers. Please contact us for more information. Flat braids made of many copper wires are also sometimes used for flexible electrical connections between large components. The numerous smaller wires comprising the braid are much more resistant to breaking under repeated motion and vibration than is a cable of larger wires.

Copper braid is made from weaving together strands of copper wire. The flexibility of the braid is determined by the diameter of the copper wire. The smaller the wire the greater the flexibility and the larger the volume occupied by the braid and the more expensive the braid becomes. Our standard sizes are 0.2, 0.1 and 0.05 mm diameter although other sizes are available on request.

Flexibility is also determined by the type of weave. Flat braids are flexible in one axis. Round braids are flexible in 2 axis but rope braids are even more flexible than round braids, but also more expensive. An explanation of the construction of a copper braid is on our Products page.

We manufacture and Copper Braid Bond. These flexible Copper Braid Bond are used for bonding metal gates, doors, fences etc. Other lengths and sizes are available on request.

Copper Braid Bond / Flexible Copper Braid Bonds Copper Braid Bond / Flexible Copper Braid Bonds

Other lengths and sizes are available on request for Copper Braid Bond

Copper Braid Bond Braids made of many copper wires are also sometimes used for flexible electrical connections between large components. The numerous smaller wires comprising the braid are much more resistant to breaking under repeated motion and vibration than is a cable of larger wires.

In electrical and electronic cables, braid is a tubular sheath made of braided strands of metal placed around a central cable for shielding against electromagnetic interference. The braid is grounded while the central conductor or conductors carry the signal.

High conductivity copper
Wire to Bs - 4109 - C101
Suitable for Earth Bonding/ also supplied as Standard Drilled & Pre-Cut Bonds.
Customer specific sizes & types of braid can be manufactured on order.

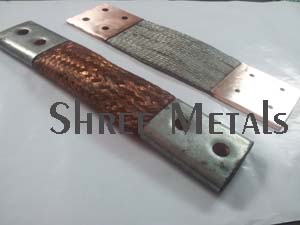

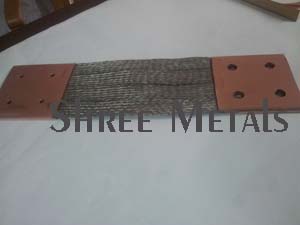

Flexible electrical connectors solve high-voltage connectivity problems created by vibration from generators and transformers. When used as the initial connector from vibration-producing equipment to a power distribution network, flexible connectors (or flexible braided jumpers) isolate the main electrical grounding bus work from the cause of vibration.

And while flexible braided connectors are more expensive than using copper bus bar, flex braid returns the investment by cutting the potential cost of down time, maintenance and energy loss created by loose electrical connections.

In addition to the positive aspects of flex braid, the most advantageous feature of this versatile connector is evident in its name – flexibility. A cable or cable harness with the same current-carrying ampacity is much stiffer and unwieldy. A cable that will carry 750 amps is fairly easy to work in 20-foot lengths, but bending a shorter piece and routing it around other objects becomes very difficult. In addition to their stiff, unwieldy nature, cables are rigid and transmit vibration.

Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers.

We manufacture and export PVC coated Stranded Copper Conductor.

PVC Covered Soft Drawn Cu Conductor to BS - 6004

PVC Coated Stranded Copper Conductor / PVC Coating on Copper Strand

Solid vs. stranded

Single-strand copper wire, also called solid wire or solid-core wire, consists of one piece of copper metal wire surrounded by an insulator. Single-strand copper conductors are typically used as magnet wire in motors and transformers. They are relatively rigid, do not bend easily, and are typically installed in permanent, infrequently handled, and low flex applications.

Single strand copper wires also provide mechanical ruggedness and good protection against the environment. A stranded copper wire refers to a group of copper wires that are braided or twisted together. A stranded copper wire is more flexible and easier to install than a single-strand copper wire of the same cross section. Stranding also improves wire longevity for applications with moderate to high vibration. A particular cross-section of a stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility.

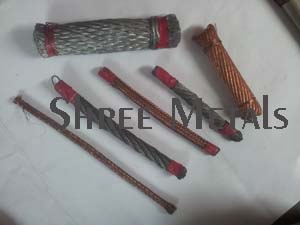

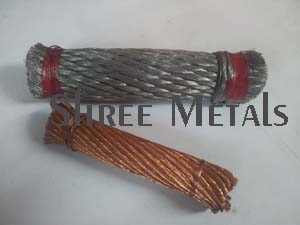

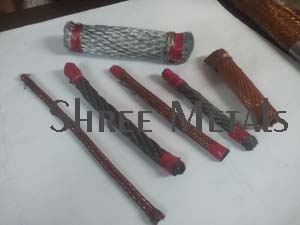

We manufacture Flexible Stranded Ropes of Copper. Our range of Copper

Conductor/Conductors also includes Round copper braids and Flexible Stranded Ropes of Copper. Our Flexible Stranded Ropes of Copper is available with plain, tinned, nickel-plated or silver-plated surfaces, depending on your application

Our Flexible Stranded Ropes of Copper stand out by being highly twist-free and having a compact cutting surface, which is important for your problem-free further processing. Our round copper rope can be woven with a left or right hand twist. Round, stranded copper flexible are used in welding and power equipment for electrical components such as switches as well as to conduct welding current (welding tools, robots and lines).These can be made from electrolytic copper Cu-ETP (grade C101) or from oxygen free copper Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers.

We offer a wide choice of braid types (flat, round, rope and layered), strand sizes, finishes, termination options (crimped, pressed and swaged), insulation and identification. Our highly flexible earthing connectors and earth leads are commonly used in switchgear, building services and a wide range of industries. We offer competitive pricing and ex-stock or short lead time deliveries.

Flexible Stranded Ropes of Copper can be made from electrolytic copper Cu-ETP (grade C101) or from oxygen free copper

Finish in Flexible Stranded Ropes of Copper:

Our wide range of copper braid products is available in the following copper wire finishes:

Bare copper / Plain copper / red copper
Electro tin plated copper
Electro nickel plated copper
99.99% pure Silver electro plated copper
Enamel coated, which insulates each wire
And other finishes on request.

We use the finest quality material for Flexible Stranded Ropes of Copper to ensure consistency of quality and performance, drawing on our supplier’s decades of experience in drawing, stranding and braiding, as well as surface treatment.

Copper Braid Construction

The construction of Copper braid is usually written as:
48 / 30 / 0.15, where:
48 = the number of carriers
30 =the number of wires per carrier
0.15 = the diameter of each wire in mm
The cross sectional area (CSA) of a copper braid can be calculated from this information:

(Carriers x wires per carrier x wire diameter ² x 3.142) / 4
So, for a copper braid with the specification: 48 / 30 / 0.15, this would be:

48 x 30 x 0.15² x 3.142 / 4 = 101.80
=25.45 mm²

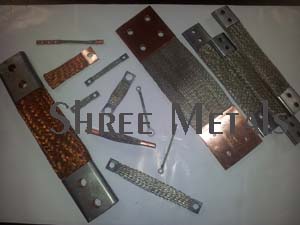

Material :

C11000 copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-4000 SQMM

Ferrules :

seamless bare or tinned C1100 copper tube

Ferrule plating :

no plating, tin plating or silver plating

Purpose :

flexible electrical or conductive connection for locomotive

RoHS compliant

Customization available for special dimension, shapes and structure.

Material :

C11000 copper braided wire

Single wire diameter :

0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, ...

Cross section :

0.3-100 SQMM

Purpose :

flexible grounding connection

RoHS compliant

Customization available for special dimension, shapes and structure.
